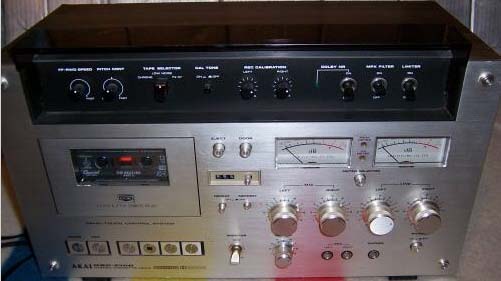

Кассетная дека AKAI GXC-570D
ＣＯＮＰＯＮＥＮＴ ＣＡＳＳＥＴＴＥ ＤＥＣＫ
Год выпуска аппарата 1976. Каталожная стоимость составляла 185,000Yen
СПЕЦИФИКАЦИЯ
| Track system | Four two track stereo system |
| Tape speed | 4.75cm (reproduction pitch control±5%)/second |
| Wow and flutter | ０．０６％ＷＲＭＳ |
| Frequency characteristic | 30~19,000Hz±3dB Ferry chromium tape 30~16,000Hz±3dB Chromium tape 30~15,000Hz±3dB Low noise tape |
| Recording bias frequency | １００ｋＨｚ |
| The comprehensive signal to noise ratio | At the time of 55dB Dolby NR use ? The amount of S/N improvements is 6dB (1kHz) and 10dB (5kHz or more). |

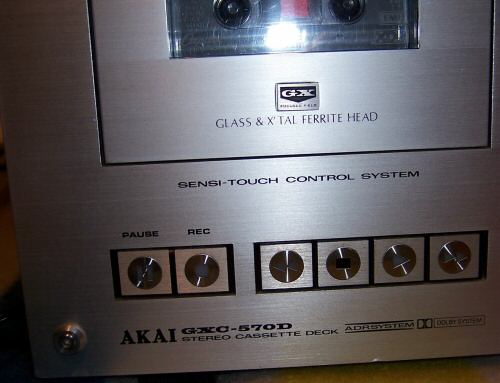

| Head | Recording GX head x1 / reproduction GX head x1 (combination type) erasing-head x1. |

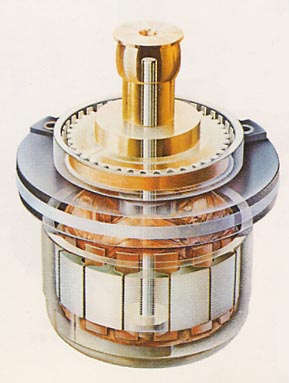

| Motor | AC SABO outer rotor motor xwith built-in GPC1?DC motor x2 |
| Fast forward / rolling-back time | A 60-80 second variable (C-60 cassette tape) |
| Input (level) | microphone: -- 0.3mV / ?69dB (conformity impedance 600ohm~10kohm) line: -- 70mV/21dB (input impedance 100kohm) |
| Output (level) | Line: 0.775V (0VU) load impedance 20kohm headphone 50mV / 8ohms |
| напряжение питания | ＡＣ１００Ｖ ５０／６０Ｈｚ |
| габариты | ４４０Ｗ×２５５Ｈ×２２５mm |
| вес аппарата | １３．５ｋｇ |
